Setup

The following step will have to exectuted once, from a user with Admin credentials.

Storage Scenario​

Once the plugin is installed and available, the first step is to configure the storage scenario

note

ftrack Connect should be running in order to configure the storage scenario`

Setup the storage scenario​

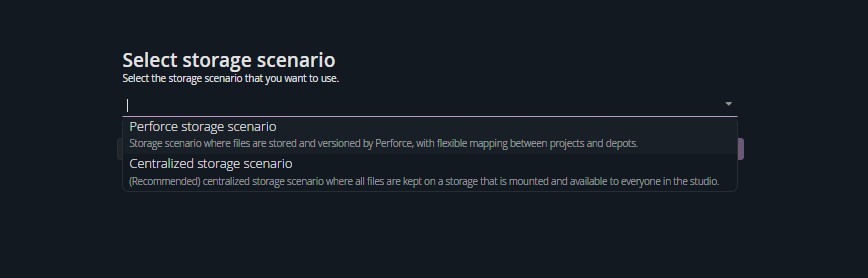

head over Settings -> Storage Scenario, click Configure Storage Scenario and select Perforce storage scenario

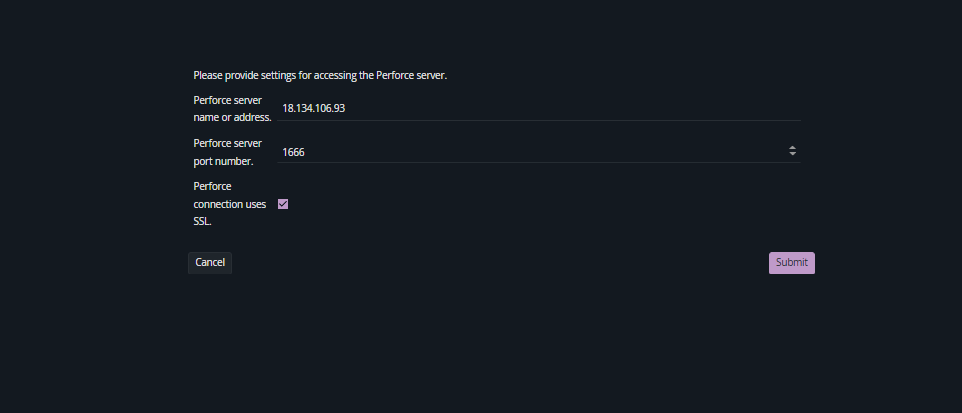

click Next to setup the required fields

  • Perforce name or address : This should point to either your DNS or IP address of the Perforce instance.
  • Perforce Server port number : This should point to the port used by the perforce server (default: 1666).
  • Perforce connection uses SSL : Set this accordingly to your Perfoce deployment.

Once done, restart ftrack Connect to pick up the changes.

Perforce Setup​

note

This is has to be performed by a perforce user with Admin rights

  • In p4admin : Create users with name as the same login name as ftrack

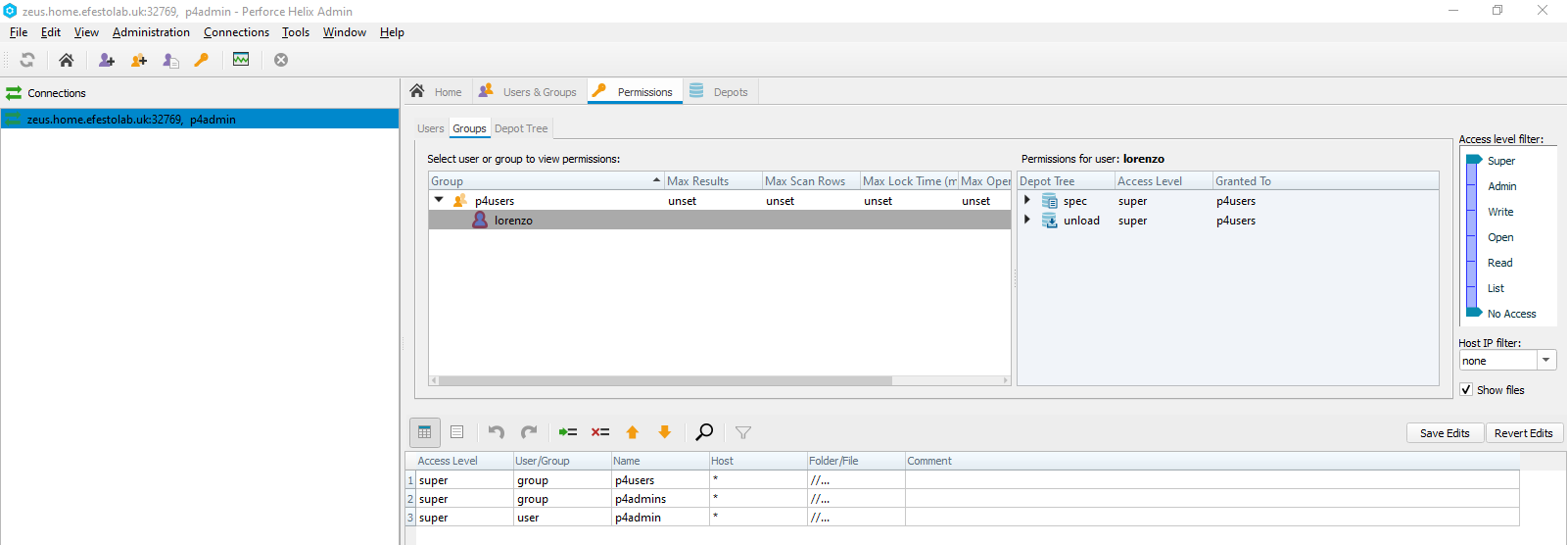

  • In p4admin : Ensure users are part of the p4users group as Members and Owners

Workspace and local folder​

Local folder​

Create a workspace folder on your local disk as a location to save and store files

For example:

    C:\Users\$USER\Documents\PerforceWS

Workspace​

Create workspace​

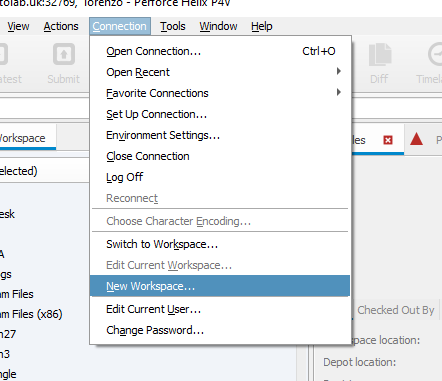

In p4v: login with your current ftrack username and perforce password. Create a new workspace

Set workspace​

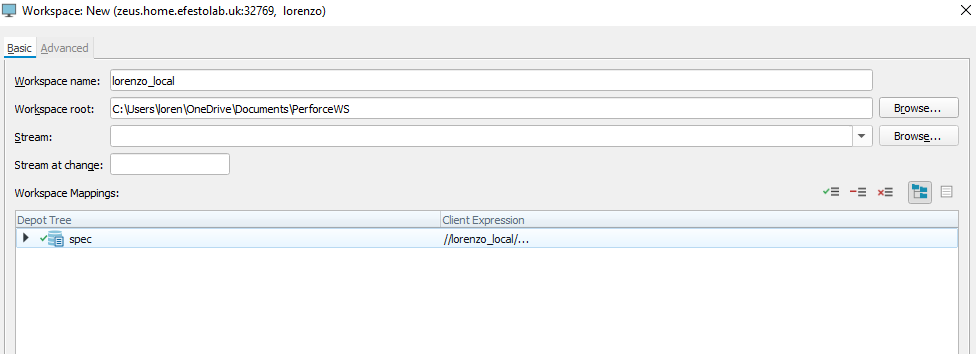

Set the workspace path to the folder created in step 1 of this process:

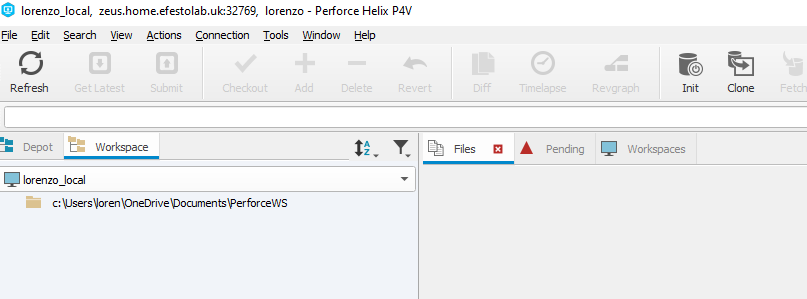

Once complete, p4v should look like this:

Integration

Setup user workspace and credentials​

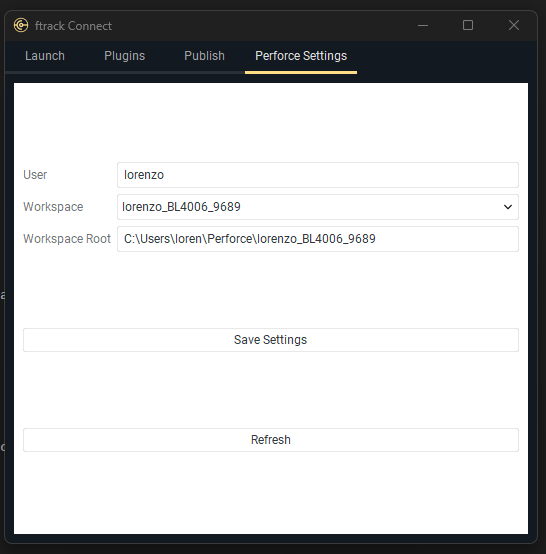

If the plugin is properly installed you should see the Perforce Settings tab.

Select the workspace you wish to use and click save settings.

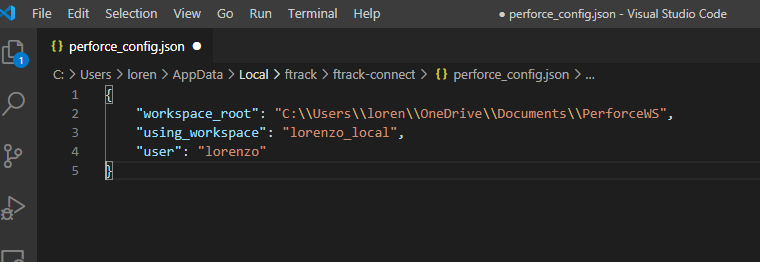

This will write a configuration file into the ftrack-connect data folder, which will contain your chosen settings:

note

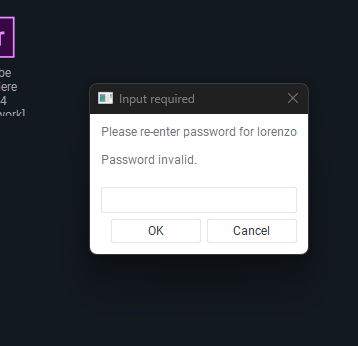

A login window will display and ask for a username and password, if you have not logged into Perforce for a while.

Publishing

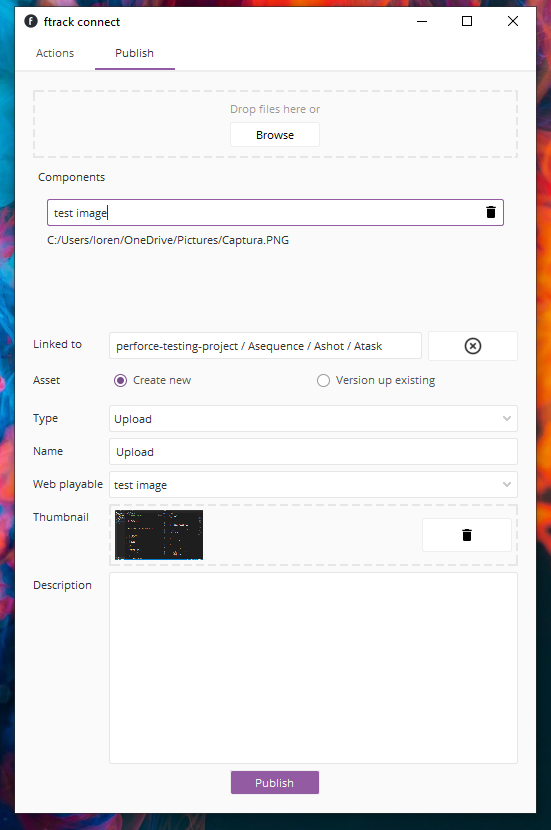

You should now be able to publish to perforce using connect as usual using connect or any other ftrack integration.

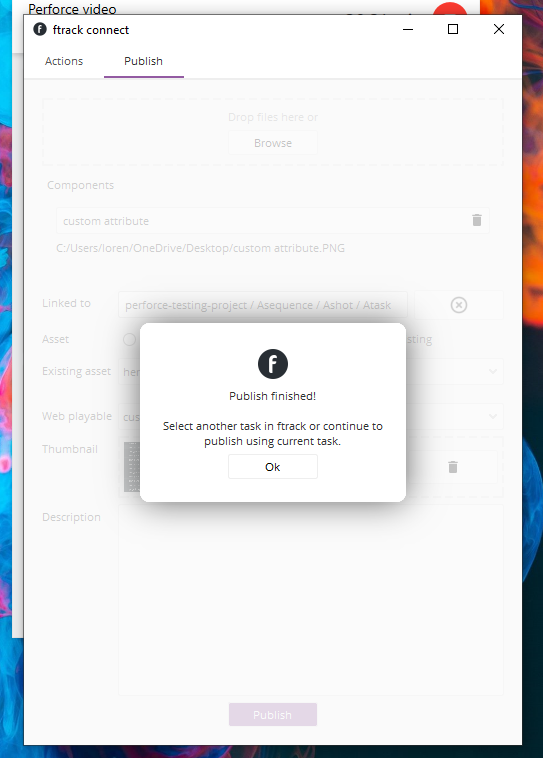

This will result in ftrack Connect reporting a successful publish:

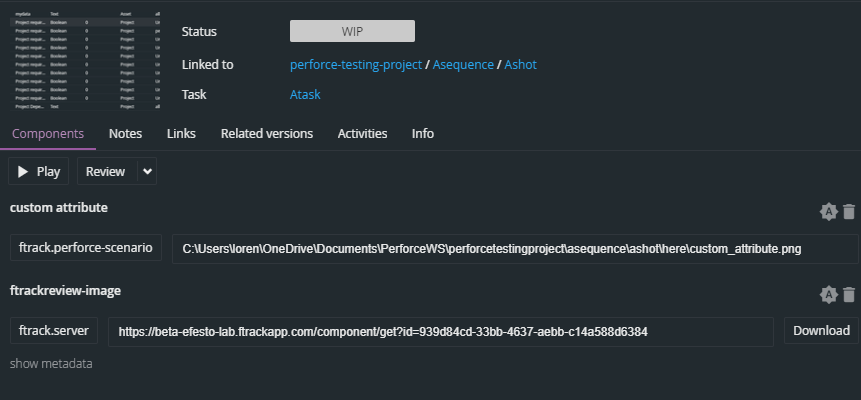

The component will be added to the server’s ftrack.perforce-scenario location.

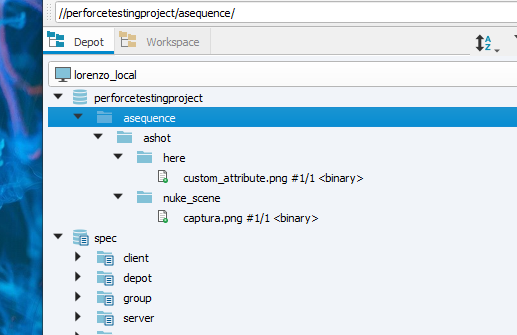

Running p4v should show the files in the depot.
